Residential Design & Remodeling
The client wanted to remodel the entire space of a residential historic loft-style apartment (condo), including the HVAC system, lighting, fixtures, and some walls.

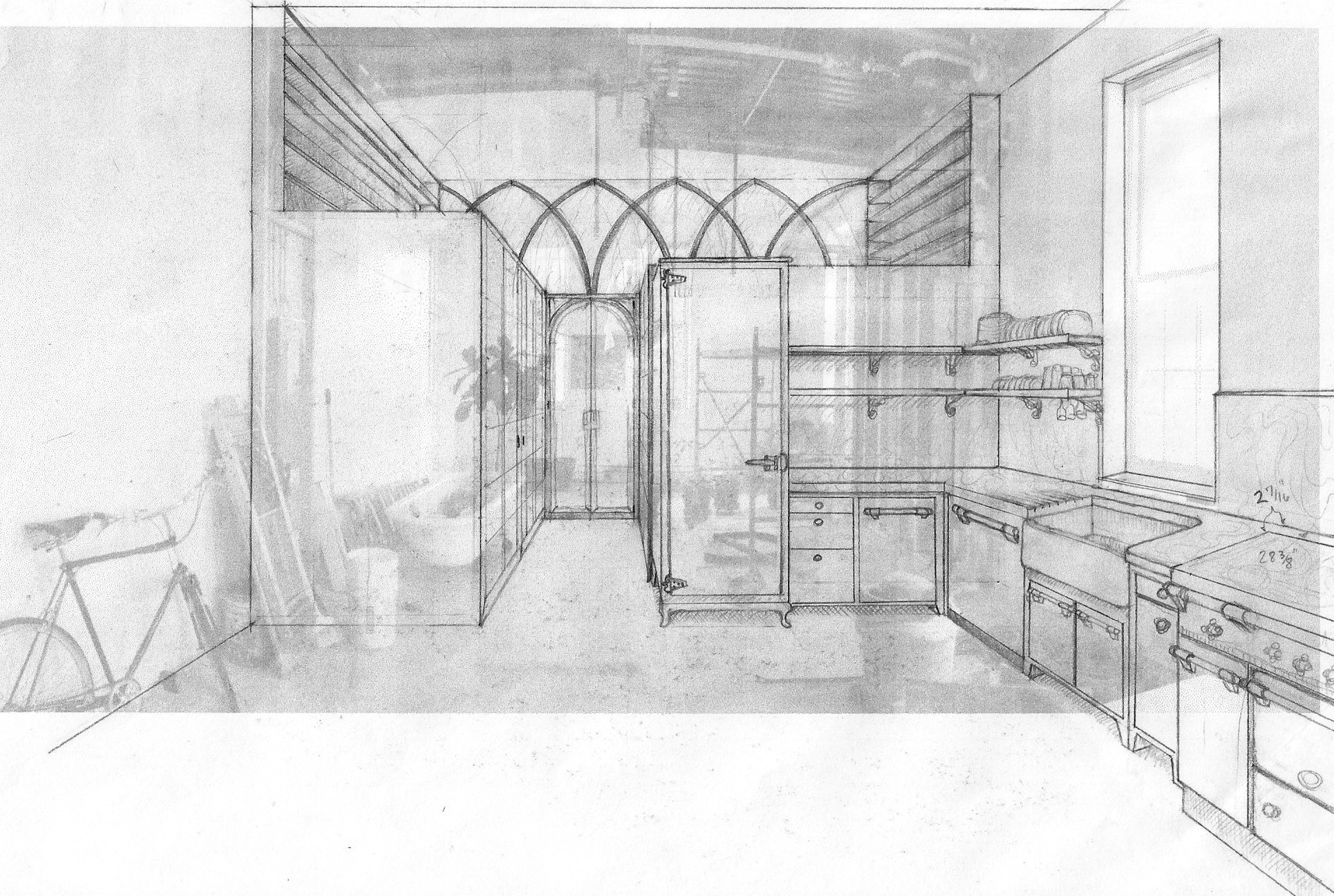

Preliminary sketch overlay, visualizing the desired buildout and new fixtures in place, drawn over an image of the space in its current state.

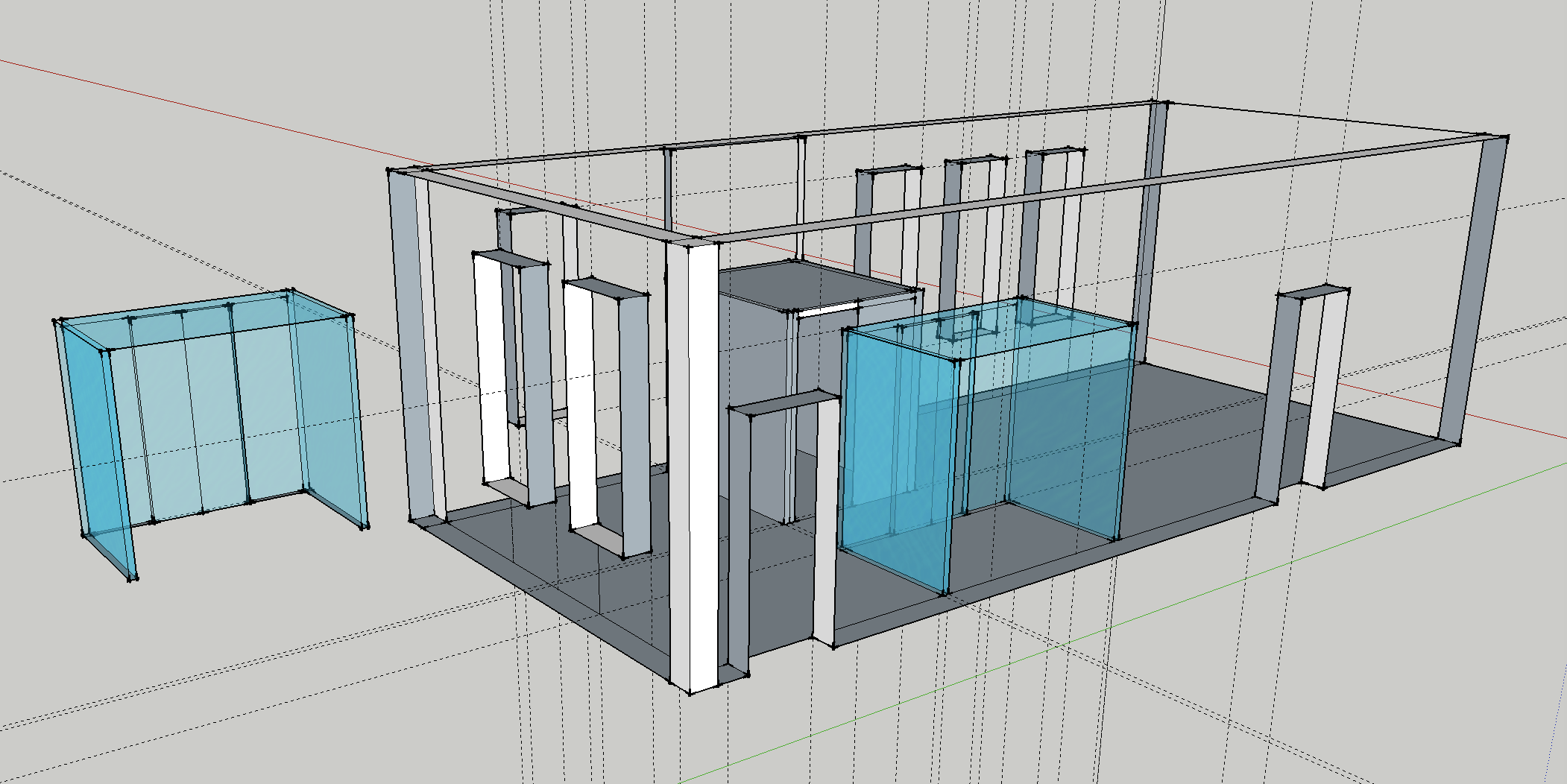

3D Preliminary Computer Visualization
Preliminary computer-drawn visual of the size and shape of the right half (shown above) of the space. For reference, the walls were 13 feet in height.
Floor Plan
A scaled floor plan with precise dimensions was created in Layout, computer-based digital floor plan rendering software, width various layers to show dimensions, ceiling panel grids, existing walls, new lighting to be added, new wall buildouts, and new fixture and other build-in placements.
